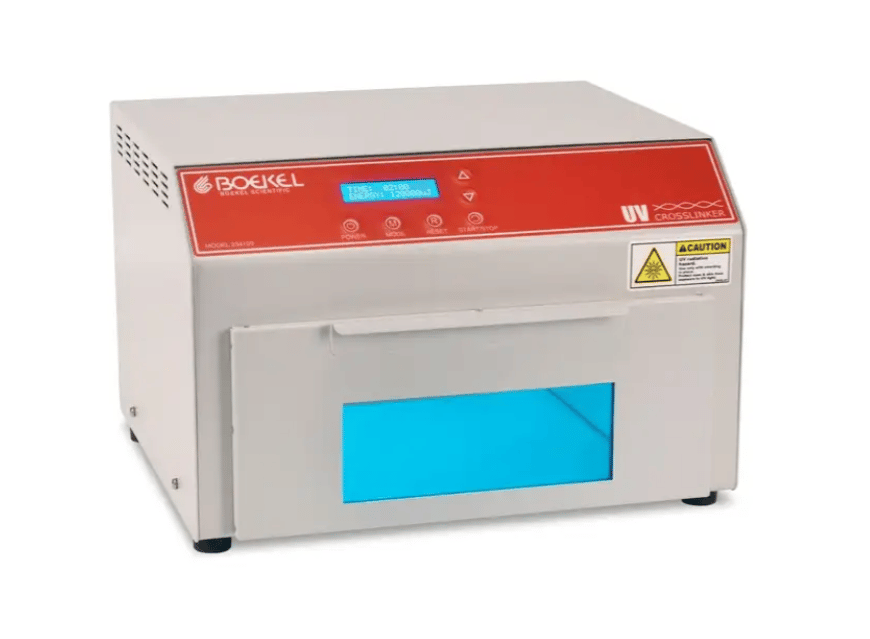

Boekel Scientific UV Crosslinker AH 230V, 234100-2

Whether you are crosslinking DNA or RNA, conducting Northern, Southern dot or slot blot analysis or UV curing, The Boekel Scientific UV Crosslinker AH provides a safe, time-efficient solution with a controlled amount of ultraviolet radiation. The researcher now gets more accurate results by utilizing our unique-to-the-market, adjustable height feature. This feature gives much more true-to-life readings by keeping samples on the base of the chamber, at the same distance from the lamps as the fixed UV sensor. Instead of building up samples to get them closer to the lamps simply adjust the lamps to get them closer to your sample! Our microprocessor detects the exact energy of the lamps and compensates accordingly.

The unit comes equipped with 5, 254 nm Shortwave Lamps
No more manual calibration required when switching between wavelengths. The Boekel UV Crosslinker AH comes calibrated for 254 nm Shortwave Lamps as well as 306 nm and 368 nm lamps. Change your lamps and select your lamp choice on the display – that’s it!
Large UV protective window allows for easier process inspection
Two modes of operation – Energy or Time
Open Door Safety mechanism
Energy Efficient electronic ballasts
Small footprint
UL/CSA/CE Approved

Ambient Temperature Operating Range: 16°C to 28°C
Maximum Time Setpoint: 999m 59s in 1 second increments
Maximum Energy Setpoint: 9,999,900µJ in 100µJ increments
Supply Ratings: 234100-2: 230VAC±10%, 50/60 Hz
Power Rating: 175W
Net Weight: 30 lb
Exterior Dimensions (maximum): 15 1/8”W x 14 3/8”D x 10 1/4”H
Chamber Dimensions (maximum): 11.5" w x 12.5" D X4.1" H(Adjustable Down to 1.6" H)
