S4002. Holiday Detector 1–20Kv. Includes High Voltage Handle

$16,900.00


S4002. Holiday Detector 1–20Kv. Includes High Voltage Handle

Product Description

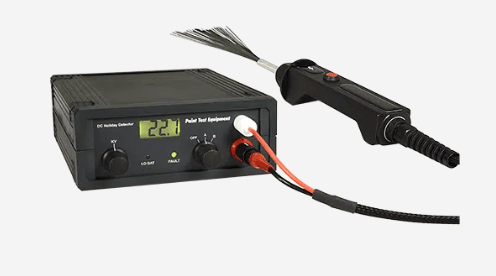

Holiday Tester for detecting pinholes and flaws in coatings on conductive substrates.

Where coatings have to provide an effective safeguard against corrosion, it is essential that any pinholes or flaws that will eventually lead to corrosion are detected at the earliest possible stage.

Available in the following Holiday Detector models: S4001 0.5–6kV for coatings up to 1100μm, S4002 1–20kV for coatings up to 3700μm and S4003 1–30kV for coatings up to 8000μm.

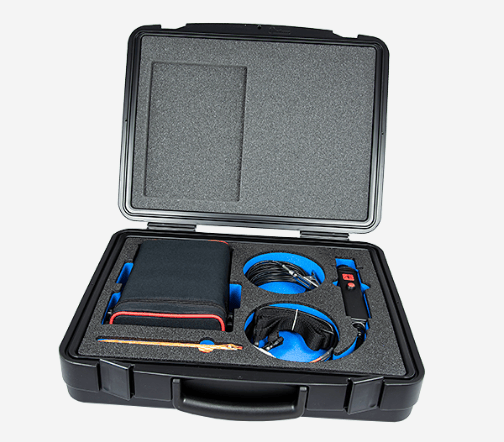

Supplied in an industrial Carrying Case with High Voltage Handle, Band Brush Probe, Earth Cable (10m) and Carrying Bag. Calibration Certificate with traceability to UKAS is an optional extra.

Compliant to the following Standards: ISO 29601, ISO 2746, ASTM D5162, ASTM G62, NACE SP0274, NACE SP0188 and NACE SP0490.

Operation video
